The Complete Guide to Centerless Lathe Machines

Centerless lathe machines are a pivotal component in the manufacturing industry, known for their precision, efficiency, and versatility. These machines are essential for producing cylindrical parts with high accuracy and smooth surface finishes. In this comprehensive guide, we will explore the components, working principles, advantages, applications, and maintenance of centerless lathe machines.

Understanding Centerless Lathe Machines

Centerless lathe machines differ from traditional lathes in that they do not require a workpiece to be clamped or centered. Instead, the workpiece is supported by a blade and rotated by regulating wheels, allowing for continuous and precise machining.

Key Components

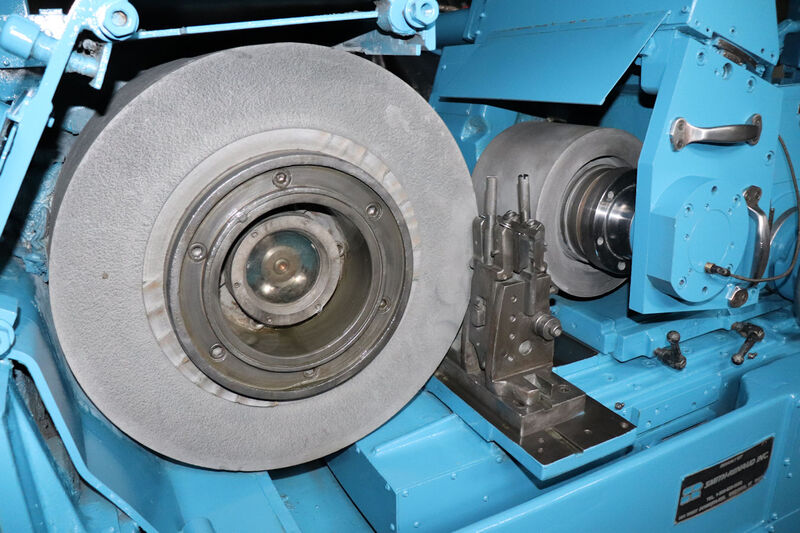

A centerless lathe machine comprises several critical components. The grinding wheel is the primary tool used for material removal. It rotates at high speed, grinding the workpiece to the desired dimensions and finish. Positioned opposite the grinding wheel, the regulating wheel controls the rotational speed and feed rate of the workpiece. The work rest blade supports the workpiece during the grinding process. It is adjustable to accommodate different diameters and ensures stability. Dressing tools are used to maintain the sharpness and precision of the grinding wheel, essential for consistent performance. To prevent overheating and ensure a high-quality surface finish, coolant systems are integrated into centerless lathe machines.

Working Principle

The working principle of a centerless lathe machine involves several steps. First, the workpiece is placed on the work rest blade, positioned between the grinding wheel and the regulating wheel. As the grinding wheel rotates, it removes material from the workpiece. Simultaneously, the regulating wheel controls the speed and feed, ensuring even and precise grinding. Unlike traditional lathes, centerless lathes allow for continuous feeding of the workpiece, making them ideal for high-volume production. Throughout the process, coolant is applied to reduce heat and prevent thermal damage to both the workpiece and the machine components.

Advantages of Centerless Lathe Machines

Centerless lathe machines offer numerous advantages. They are known for their ability to produce parts with tight tolerances and superior surface finishes. The continuous feed mechanism allows for high-speed production, reducing cycle times and increasing throughput. These machines can handle a wide range of materials, including metals, plastics, and ceramics, making them suitable for various industries. Without the need for centering or clamping, setup times are significantly reduced, enhancing productivity. Additionally, centerless grinding ensures consistent results across large production runs, maintaining uniformity in part dimensions and quality.

Applications of Centerless Lathe Machines

Centerless lathe machines are used in various industries due to their versatility and precision. In the automotive industry, they are used for manufacturing precision components such as fuel injectors, valve stems, and camshafts. The aerospace industry relies on them for the production of high-precision parts for aircraft engines, landing gear, and other critical components. In the medical industry, they are essential for the fabrication of medical devices, surgical instruments, and prosthetic components with exacting specifications. The bearing industry uses centerless lathes for grinding bearing races, rollers, and other elements requiring precise dimensions and smooth surfaces. Additionally, these machines are widely used in general manufacturing for the production of shafts, pins, and other cylindrical parts used in machinery and equipment.

Maintenance and Troubleshooting

To ensure the longevity and optimal performance of centerless lathe machines, regular maintenance is crucial. Routine inspections should be conducted to regularly inspect the machine components, including the grinding wheel, regulating wheel, and work rest blade, for wear and damage. It is essential to ensure all moving parts are adequately lubricated to minimize friction and wear. The coolant system should be maintained to prevent contamination and ensure efficient cooling during the grinding process. Regularly dressing the grinding wheel is necessary to maintain its sharpness and precision. Periodically checking and adjusting the alignment of the grinding and regulating wheels will ensure accurate grinding.

Troubleshooting Common Issues

Common issues can arise with centerless lathe machines, and troubleshooting is essential for maintaining performance. If a poor surface finish is observed, check the condition of the grinding wheel and ensure proper coolant flow. Dressing the wheel may also improve the finish. Inconsistent dimensions may require verification of the alignment of the wheels and the stability of the work rest blade. Adjustments may be necessary to achieve consistent results. Overheating can be prevented by ensuring the coolant system is functioning correctly and the coolant is clean. Excessive feed rates or wheel speeds can also cause overheating. If the grinding wheel becomes glazed, it may require dressing to restore its cutting ability.
