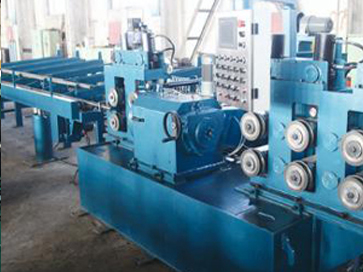

Aluminum rod peeling machine: BP-250 model leads the way in efficient metal processing

In the field of modern metal processing, the BP-250 aluminum rod peeling machine has become the industry leader with its excellent performance and innovative technology. Let’s take a look at what makes this machine unique and its wide range of applications in aluminum processing.

Highlights of the BP-250 model:

1. Efficient peeling technology: Equipped with advanced spindle technology and four-knife cutterhead design, the BP-250 model can peel the surface of aluminum rods at an efficient speed, greatly shortening the production cycle.

2. Widely applicable processing range: Whether it is for raw materials with a diameter of ∮92-255mm, or providing finished products in the range of ∮90-250mm, BP-250 has demonstrated excellent processing adaptability.

3. Accuracy and stability: The equipment maintains excellent dimensional accuracy, surface roughness control and true roundness during the processing process, ensuring the production of high-quality, precise aluminum finished products.

4. Intelligent control system: The highly advanced control system makes operation easier and enables online blade adjustment without downtime, improving production efficiency.

5. Reliability design: BP-250 uses low-wear parts, which reduces maintenance costs and ensures long-term stable operation of the equipment, boosting the reliability of the production line.

In the field of modern industry, the BP-250 aluminum rod peeling machine is not only a piece of equipment, but also a representative of technological innovation. Let’s dive into more features and applications of this device in different industries.

Technical excellence, doubled efficiency:

The BP-250 model adopts a high-efficiency spindle and a four-knife cutterhead to make the peeling process faster and more efficient. Its spindle speed of 70-260r/min can significantly shorten the production cycle and improve production efficiency compared with traditional equipment.

Intelligent control, convenient operation:

The equipment is equipped with an advanced control system that supports online blade adjustment without downtime. Operators can easily master the equipment, achieve precise control, and improve the intelligence level of the production line.

Wide range of applications and excellent output:

• Construction and structure: In the manufacturing of aluminum alloy structural parts, BP-250 ensures the high strength and precision of aluminum materials, providing reliable material support for the construction field.

• Power and energy: Aluminum rods are used to manufacture power transmission lines, ensuring the efficient operation of power systems and contributing to the energy industry.

• Transportation: Providing high-standard aluminum materials for automobiles, aviation and other means of transportation, which not only reduces the weight of the vehicle, but also improves fuel efficiency.

A symbol of reliability and stability:

The BP-250 model is not only excellent in performance, but also top-notch in reliability and stability. Its well-designed structure and high-quality materials ensure long-term reliability of the equipment and minimize maintenance costs.

Technical parameters at a glance: BP-250 model

• Main power supply: AC 380V 50HZ
• Control power supply: AC 220V 50HZ
• Control system power supply: DC24V
• Raw material status and hardness: hot rolled material ≤ HB310
• Processing length (standard configuration is 6m): ≥ 3.5m
• Processing range (raw materials): ∮92-255mm
• Processing range (finished product): ∮90-250mm
• Cutterhead form: four knives
• Knife adjustment method: Adjust the blade online without stopping the machine
• Spindle speed: 70-260r/min
• Cutting depth (diameter direction): 1-5mm
• Feed speed: 0.5-4m/min
• Turning tolerance: h9-h11
• Surface roughness: Ra3.2-12.5
• True roundness: ≤ 0.05
• Dimensional accuracy: ≤ 0.1
• Straightness (raw material): ≤ 3‰
• Straightness (finished product): ≤ 3‰
• Length of loading and unloading rack (standard configuration): 6m
• Installed capacity: 119KW
• Main motor power: 75KW
• Feed motor power: 3.0KW * 6
• Unplug the motor power supply: 3.0KW * 4
• Hydraulic station motor power: 11KW * 1
• Chip removal device motor power: 0.75KW * 1
• Shrinking knife motor power: 0.4KW * 1
• Upper and lower roller motor power: 1.1KW * 1
• Weight: 60T

• Overall dimensions (length, width and height) unit: m: 20 * 4.5 * 2.4

Conclusion:

The BP-250 aluminum rod peeling machine has become a leader in the field of modern aluminum processing with its advanced technology, efficient processing capabilities and wide range of applications. If you have any questions about this device or need to know more, please feel free to contact us. We will wholeheartedly provide you with professional solutions.
